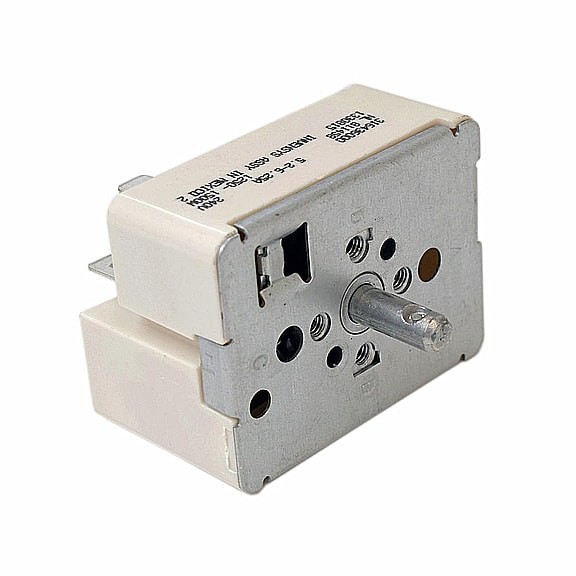

Frigidaire 316436000 Range Infinite Control Switch

Genuine OEM Surface Heating Element Rotary Control Switch

📝 Product Overview

The Frigidaire 316436000 is a factory-original replacement infinite control switch for residential electric ranges, stoves, and cooktops. Mounted directly behind the control console panel face, this genuine OEM component serves as the primary power regulator for your cooktop's surface radiant or coil heating elements.

As an Authentic Frigidaire Factory Component , this infinite switch utilizes an internal bimetallic contact assembly to regulate heat output by cycling 240V power on and off at variable time frequencies. When you turn the control dial, you modify the internal mechanical tension against a heating strip. Setting the dial to a lower option triggers short, sporadic bursts of power to simmer foods gently, while turning it to the maximum setting forces the contacts to stay clamped together continuously to deliver full wattage for high-heat boiling. Opting for a genuine factory switch guarantees exact timing calibration, maintains proper synchronization with the dashboard's "Element On" warning light circuit, and matches your original factory wire terminal orientation perfectly.

🔍 Signs Your Cooktop Infinite Control Switch Needs Replacement

• Burner Glows Red-Hot on Every Setting: The internal bimetallic contact points have physically fused together from electrical arcing. Even when turned down to Low, the burner runs continuously at maximum high heat, burning food and creating a safety hazard.
• The Element Fails to Turn On or Heat Up: The heating element itself has tested fine for electrical continuity, but it remains completely cold because the switch’s internal power terminals have burnt or oxidized open.
• "Element On" Console Light Remains Lit Continuously: Even when the knob is shifted to the strict "Off" position, the indicator light stays on, signaling an internal short circuit inside the switch's auxiliary terminal paths.
• Erratic Temperature Control: The burner randomly switches between boiling hot and stone cold regardless of dial placement, meaning the internal bimetallic strip has lost its factory tension calibration.

🔧 Technical Specifications

• Part Number: 316436000
• Part Type: Infinite Control Switch for Surface Heating Element
• Electrical Profile: 240 Volt AC, 15 Amp Heavy-Duty Current Rating
• Actuator Type: Formed D-shaped plastic/metal control shaft
• Condition: Brand New, Genuine Frigidaire OEM Replacement Part
• Brand Compatibility: Precision engineered to fit select freestanding, slide-in, and drop-in electric ranges across the Frigidaire, Frigidaire Gallery, Tappan, Crosley, Gibson, and Kenmore (select 790-series models) brand catalogs.

📦 Professional Installation, Care & Maintenance Tips

⚠️ WARNING: POTENTIAL FOR HIGH-VOLTAGE ELECTRICAL SHOCK! Infinite control switches process heavy-duty 240V AC utility power currents. **You must completely pull the range's main electrical power cord out from the wall terminal box or flip the dedicated 40-amp or 50-amp dual circuit breakers to the OFF position before beginning this repair**. Never service a live appliance. Stamped sheet-metal chassis structures feature thin, razor-sharp factory edge lines; **always wear cut-resistant mechanics work gloves and protective safety glasses throughout this repair**. Pro Tip: Utilize the "Wire-by-Wire" Swap Technique and Verify Tight Fits! Cooktop wiring layouts involve an intricate cluster of identical-looking power lines. To prevent catastrophic wiring errors, **never disconnect all the wires off the failed switch at the same time**. Instead, unbolt the broken switch from the console panel, hold it right next to your brand-new **Frigidaire 316436000** switch, and **transfer the slip-on female spade wire connectors one by one to the exact same alphanumeric terminal stamps (L1, L2, H1, H2, P) on the fresh module**. If a slide-on terminal connector feels loose or slides off the new pin too easily, use needle-nose pliers to gently squeeze the female spade clip until it achieves a tight bite. Loose connections generate intense localized electrical resistance, which will overheat and melt your new switch prematurely. **Always hand-drive all anchoring hardware manually with basic hand tools** to avoid stripping the fine threads on the control bezel or switch body. Installation Steps: Fully isolate all incoming high-voltage electrical lines. Pull the plastic dial knob straight forward off the front of the switch shaft. Remove the rear-facing security screws on the back upper guard panel and lift the metal panel shield away. Unthread the two screws anchoring the switch face to the front console bezel. Pull the switch out slightly to expose the wire cluster. Swap the wire leads one by one to the corresponding pins on the fresh replacement switch block. Guide the new switch actuator shaft forward through the bezel frame opening, hand-tighten the anchoring screws until snug, push your dial knob firmly onto the post, re-secure the back cover plate, slide the range back into position, restore your utility lines, and test the burner at various heat levels to ensure proper operation.

Specifications

• Type: Switch
• Color: Multicolor

Condition: Open box
