Frigidaire 5304530715 | Refrigerator LED Light ASSY Double Wide | Genuine OEM (Open box)

Frigidaire 5304530715 | Refrigerator LED Light ASSY Double Wide | Genuine OEM (Open box).

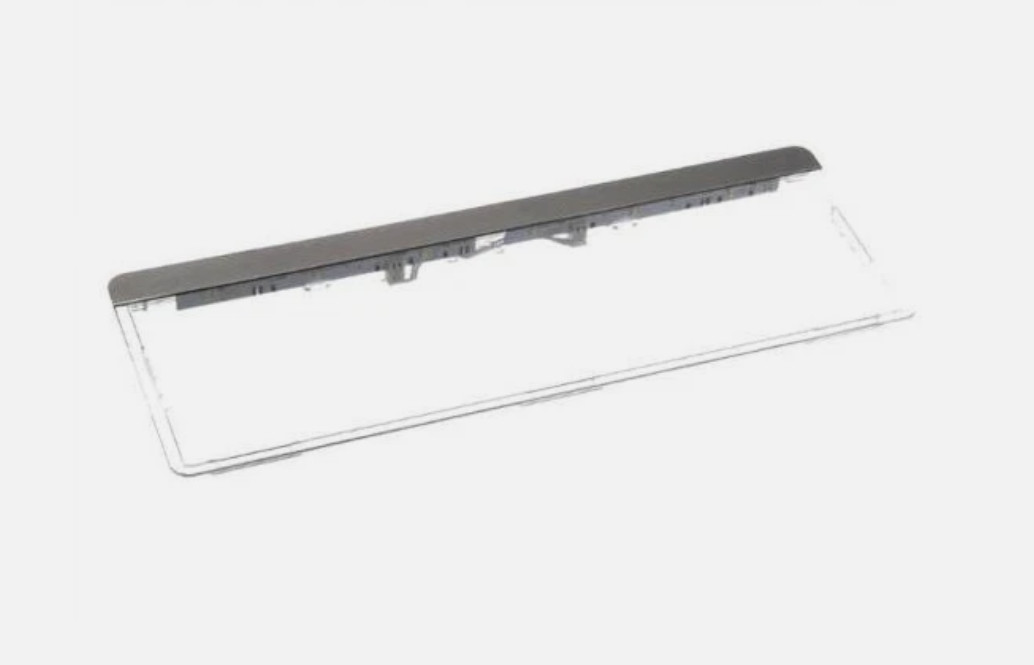

Frigidaire 5304530715 Refrigerator LED Light Assembly

Genuine OEM High-Efficiency Double-Wide Interior LED Module

📝 Product Overview

The Frigidaire 5304530715 is a genuine OEM refrigerator interior LED light assembly featuring a double-wide configuration. Typically positioned as a primary light source in high-visibility zones like the top ceiling liner or centered along the multi-flow air tower panels, this elongated module delivers expansive, bright illumination across both sides of the fresh food or freezer compartments.

As an Authentic Frigidaire Factory Component , this double-wide module houses an extended circuit board (PCB) populated with multiple surface-mount light-emitting diodes (SMD LEDs) protected by a durable, translucent diffuser lens. Engineered specifically for cold, high-humidity appliance interiors, it operates on a specialized low-voltage DC circuit to eliminate the excessive energy draw and radiant heat of old-fashioned incandescent bulbs. Choosing a genuine 5304530715 module guarantees perfect color matching with your refrigerator’s secondary lights, ensures flawless dimming performance, and safeguards against internal electrical shorts that can disrupt the appliance motherboard.

🔍 Signs the Double-Wide LED Light Assembly Needs Replacement

• Main Cabin Sections Stay Completely Dark: The refrigerator runs and cools normally, but opening the door leaves the entire upper or central section in total darkness due to a burned-out LED board or failed surface components.
• The Lights Strobe, Flicker, or Flash Rapidly: Opening the door triggers an immediate, jarring flashing effect. This happens when moisture compromises the board's capacitor banks, destabilizing the incoming voltage.
• Noticeably Dim or Weak Illumination: The light turns on but cast an eerie, faint glow because several individual diodes across the double-wide board have failed or degraded over time.
• Intermittent Shutoffs or Total Loop Failures: In models using series-wired lighting layouts, a short circuit within this primary double-wide module can act as a broken link, causing other lower side lights to drop out or glitch simultaneously.

🔧 Technical Specifications

• Part Number: 5304530715
• Part Type: Double-Wide Refrigerator Interior LED Light Board & Housing
• Condition: Brand New, Genuine Frigidaire OEM Part
• Build Profile: Pre-assembled double-wide capsule housing an extended solid-state LED printed circuit board, built-in current regulating resistors, a clear diffuser lens cover, and a pre-keyed snap-lock wire harness receiver.
• Compatibility: Engineered specifically for select Frigidaire, Electrolux, and Frigidaire Gallery refrigerator models.

📦 Professional Installation Tips

Safety Note: Completely unplug the refrigerator's power cord from the wall outlet or trip the dedicated kitchen circuit breaker off inside your home's main panel before starting this service. Even though LED lines operate on stepped-down low voltage, handling live wire plugs in damp cabinet environments poses an immediate risk of short-circuiting sensitive appliance microchips or experiencing an electrical shock. Pro Tip: Frigidaire multi-LED systems are often wired in a consecutive series chain. Because the double-wide 5304530715 module often acts as the "master gateway" light, a failure here can shut down power to perfectly working secondary lights lower down in the cabinet. **Always check for input voltage at the harness plug** using a multimeter to accurately isolate a failed light track. Installation Hack: Locate the double-wide light console pocket. Slide a flat plastic putty knife or a small flathead screwdriver wrapped in electrical tape gently beneath the outer trim bezel edge to release the hidden plastic spring tabs. Lower the assembly carefully to avoid tugging the wires, unclip the locking tab on the multi-pin plug, and detach the old module. Snap the fresh module's wire plug firmly into the cabinet receiver until it clicks, and push the housing straight back up into the liner wall slot until all tabs snap securely flush. Caution: Do not force or smash the light console back into place if you feel resistance. Make sure the wiring harness lines lay completely flat within the recessed liner channels. If wires are pinched or compressed tightly behind the plastic housing tabs, the sharp edge can cut through the wire jacket over time, leading to a direct electrical short that will destroy the fresh board or damage your main control interface.

Specifications

• Type: LED Light
• Country of Origin: China

Condition: Open box
