Frigidaire 809069206 Refrigerator Evaporator Fan Motor by Panasonic | OEM Part (Open box)

Frigidaire 809069206 Refrigerator Evaporator Fan Motor by Panasonic | OEM Part (Open box).

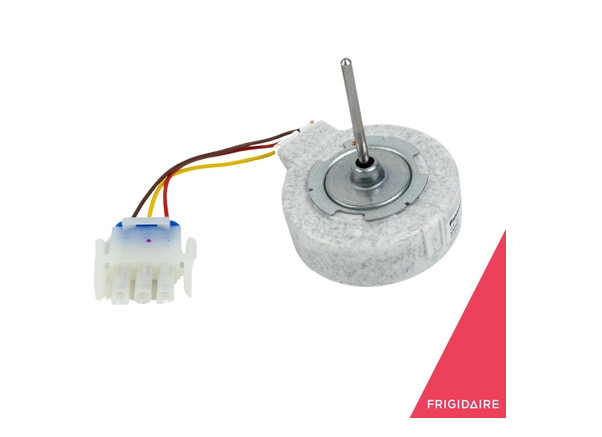

Frigidaire 809069206 Refrigerator Evaporator Fan Motor by Panasonic

Genuine OEM Evaporator Fan Motor Assembly with Wire Harness

📝 Product Overview

The Frigidaire 809069206 is a factory-original replacement refrigerator evaporator fan motor manufactured by Panasonic. Mounted inside the freezer compartment behind the rear interior panel, this genuine OEM part circulates cold air across the evaporator coils and throughout the fresh food and freezer sections.

As an Authentic Panasonic-Manufactured Frigidaire Component , this DC motor is precision-engineered for quiet operation, low power consumption, and long-term reliability in freezing environments. It powers the fan blade to maintain balanced cabinet temperatures, preventing warm spots and frost buildup. Choosing a genuine factory replacement ensures exact wiring harness plug compatibility, proper shaft length, and reliable motor speed control matching your refrigerator's electronic control board.

🔍 Signs Your Evaporator Fan Motor Needs Replacement

• Warm Fresh Food Section / Freezer Cold: The compressor runs continuously, but cold air isn't circulating into the refrigerator compartment due to a dead fan motor.
• Loud Squealing, Squeaking, or Groaning Noises: Worn motor bearings or a dry shaft cause harsh friction noises coming from behind the freezer back wall.
• Frost Buildup on Freezer Rear Panel: Restricted airflow allows excessive frost and ice to collect over the evaporator coil housing.
• Fan Blade Fails to Spin: The motor receives power from the control board, but the drive shaft is seized or electronically shorted.

🔧 Technical Specifications

• Part Number: 809069206 (Replaces 5304514383, AP6886124, PS12723223)
• Manufacturer: Panasonic (Genuine OEM supplier for Frigidaire / Electrolux)
• Part Type: Refrigerator Evaporator Fan Motor with Wire Harness
• Condition: Brand New, Genuine OEM Replacement Part
• Brand Compatibility: Precision engineered to fit select Frigidaire, Electrolux, White-Westinghouse, and Kenmore refrigerators.

📦 Professional Installation, Care & Maintenance Tips

⚠️ SAFETY WARNING: ELECTRICAL SHOCK & FROST HAZARD! Replacing the evaporator fan motor requires working inside the freezer compartment near live 120V/DC circuitry and sharp aluminum coil fins. **Always unplug the refrigerator power cord or switch off the circuit breaker before starting**. Wear cut-resistant safety gloves and eye protection throughout repair. Pro Tip: Defrost Ice Buildup & Transfer Rubber Grommets! If the rear freezer panel is frozen solid, **use a hair dryer on medium heat or allow time for a manual thaw before pulling the panel forward** to avoid snapping plastic tabs. Carefully pull the fan blade off the old shaft without bending the plastic blades. **Be sure to transfer rubber mounting grommets or dampening sleeves from the old motor bracket to the new motor** to prevent vibration noise against the cabinet. When installing your fresh **Frigidaire 809069206** motor, align the harness connector until it clicks securely into place. Installation Steps: Unplug refrigerator power. Remove freezer shelves, drawer slides, and rear panel retaining screws. Pull the back evaporator cover forward and disconnect fan wiring harness. Slide the fan blade off the motor shaft, unclip the motor from its mounting bracket, insert your new genuine **809069206** Panasonic motor into the rubber grommets, press the fan blade back on, reconnect harness, reassemble back panel and shelves, restore power, and verify airflow.

**

Specifications

• Type: Evaporator Fan Motor

Condition: Open box
