Whirlpool W11483116 Freezer LED Light Module | Genuine OEM Replacement Part (Open box)

Whirlpool W11483116 Freezer LED Light Module | Genuine OEM Replacement Part (Open box).

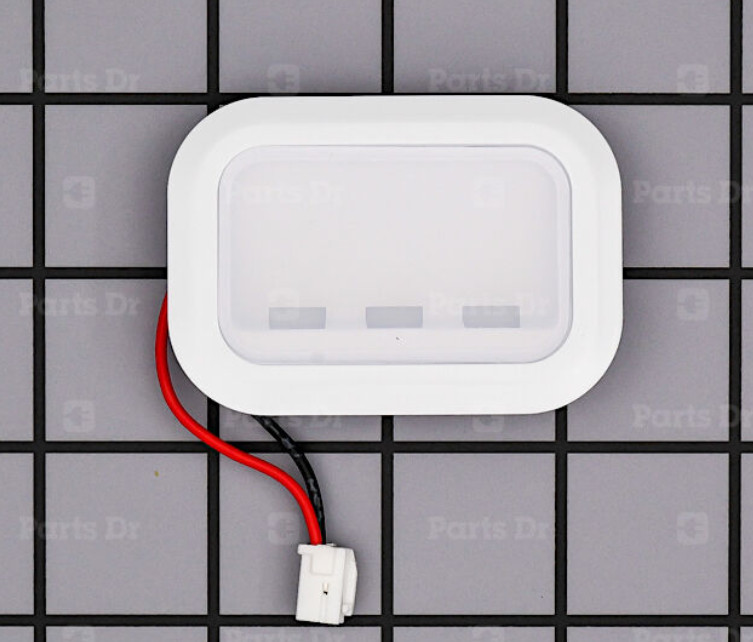

Whirlpool W11483116 Freezer LED Light Module

Genuine OEM Refrigerator Freezer Compartment LED Light Module Assembly

📝 Product Overview

The Whirlpool W11483116 is a factory-original replacement interior freezer LED light module assembly. Positioned on the ceiling or sidewall liner inside the freezer compartment of select French door, side-by-side, and bottom-freezer refrigerators, this genuine OEM part delivers bright, energy-efficient illumination throughout the freezer cavity whenever the door or drawer is opened.

As an Authentic Whirlpool Component , this solid-state LED light module features low-voltage light-emitting diodes mounted on a protected circuit board sealed inside a moisture-resistant housing with a clear, impact-resistant diffuser lens. Specially engineered to perform in sub-zero freezer temperatures and high-humidity defrost cycles, choosing a genuine factory replacement ensures exact wiring harness plug fitment, proper voltage regulation, and bright, flicker-free freezer lighting.

🔍 Signs Your Freezer LED Light Module Needs Replacement

• Freezer Compartment Completely Dark: Opening the freezer door or drawer fails to turn on the interior LED light, even though the freezer continues to cool properly.
• Flickering, Strobing, or Dim Illumination: Failing LED diodes, sub-zero driver faults, or moisture intrusion cause the light output to pulse, flicker, or glow weakly.
• Series Circuit Failure Across Multiple Modules: On refrigerator models where interior LEDs are wired in series, a single failed light module can break the electrical circuit and shut off all associated interior lights.
• Cracked Lens Cover or Frost-Induced Corrosion: Thermal expansion stress or cracks in the housing plastic allow frost melt to enter the module and short out the circuit board.

🔧 Technical Specifications

• Part Number: W11483116 (Replaces W11382098, W11527428, AP6988814, PS16218082)
• Part Type: Interior Freezer Compartment LED Light Board & Housing Assembly
• Technology: Energy-Efficient Solid-State Low-Voltage Sub-Zero LED Module
• Condition: Brand New, Genuine Whirlpool OEM Replacement Part
• Brand Compatibility: Precision engineered to fit select Whirlpool, KitchenAid, Maytag, Jenn-Air, and Amana refrigerators.

📦 Professional Installation, Care & Maintenance Tips

⚠️ CRITICAL SAFETY WARNING: ELECTRICAL ISOLATION REQUIRED! Even low-voltage LED circuits connect directly to sensitive main power and control boards. **Always completely disconnect electrical power by unplugging the refrigerator power cord or tripping the main breaker before servicing interior lighting components**. Wear protective safety glasses during installation. Pro Tip: Use Non-Marring Plastic Tools & Handle Harness Clips Carefully! Accessing the freezer LED module typically requires prying off the protective housing bezel or unbolting it from the freezer liner. **Use a plastic putty knife or non-marring trim tool to disengage retaining tabs** without scratching or cracking cold, rigid plastic liners. Take a clear smartphone reference photo of the wire harness orientation before unhooking the plug connector. When installing your fresh **Whirlpool W11483116** freezer LED module, press the harness connector firmly into place until the locking tab clicks securely. Align the housing cover and snap it into the liner recess—if securing screws are used, **always hand-tighten using standard hand tools** to prevent stripping frozen screw bosses. Installation Steps: Isolate electrical power to the appliance. Gently pry or unbolt the light housing cover from the freezer ceiling or wall liner. Release the wiring harness locking clip, disconnect the old light module, and remove it. Connect the wire harness plug to your new genuine **Whirlpool W11483116** freezer LED module, align the housing within the mounting opening, press firmly until retaining tabs snap into position (or hand-tighten securing screws), restore electrical power, and open the freezer door to test new lighting.

**

Specifications

• Type: LED Light

Condition: Open box
